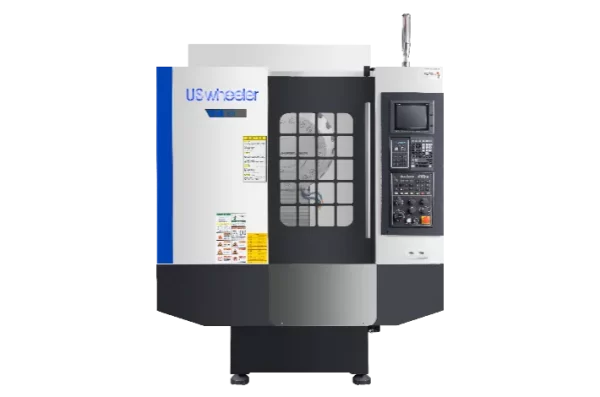

DT600

Tapping Center The machine takes the vertical frame construction, ensuring a compact structure. Its herringbone-shaped column with high rigidity, robust saddle and wide base enable the machine to handle heavy loads during operation, and avoid vibration and deformation d It is suitable for machining accessories of automobiles, motorcycles and small generators.

SKU DT600 Category US WHEELER

Model Highlights

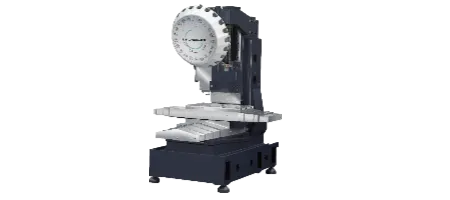

High-rigidity mechanical structure

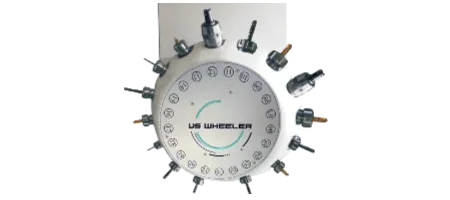

High-speed and high-efficiency ATC

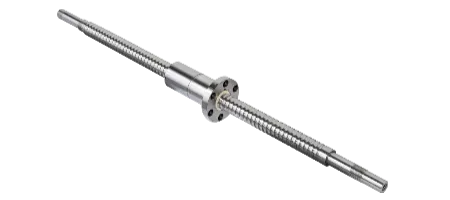

Screw

Parameter Specifications

Item	Vertical Drilling and Tapping Center DT600	Specifications
Travel	Horizontal X-axis	600mm
	Longitudinal Y-axis	400mm
	Vertical Z-axis	330mm
	Distance from spindle end face to worktable	150-480mm
	Distance from spindle center to column rail surface	464mm
Worktable	Worktable size	700*420mm
	T-slot quantity/size/spacing	314125mm
	Maximum loading capacity	250kg
Spindle	Spindle speed	50-20000rpm
	Drive mode	Direct drive
	Spindle motor torque (rated/maximum)	11.8/28.7Nm
	Main motor power	3.7/5.5kw
Servo axis	X/Y/Z rapid traverse speed	48/48/48m/min
Servo axis	Cutting feed rate	1-10000
Tool magazine	Tool magazine type	Reversible servo tool magazine with 21 tools
Tool magazine	Shank specification	BT-30
Main accuracy	Positioning accuracy	0.008mm
Main accuracy	Repeatability	0.004mm
Others	Machine footprint and height	176023202240mm
	Machine weight (apx.)	2900kg
	CNC system	FANUC /MITSUBISHI
