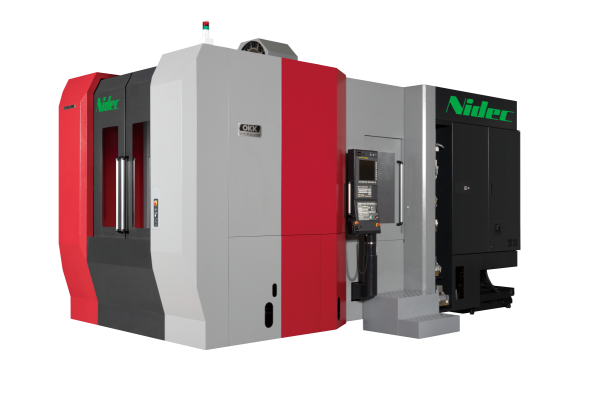

HM-X6100

5-axis Horizontal Machining Center   Thanks to the x- and z-axes with 75m/min high-speed feeding, the double-shaft structure-based high-rigidity trunnion table, and Nidec OKK’s unique APC mechanism, this model boasts improved work performance and reliability.
SKU HM-X6100 Category
Loading...

Description

Product’s specifications

OKK
Machine type 5-axes Horizontal Machining Center
Construction Horizontal
Model HM-X6100
Travel X-axis 1,050mm
Y-axis travel 900mm
Z-axis travel 1,000mm
A-axis travel -140 to 50 degrees
B-axis travel 360 degrees
Table size 600x600mm
Table load 650kg
Tool holder BT40/BT50
Spindle speed 12,000 rpm
Steering FANUC 31i-B5Plus
Workpiece size Ø 800 x 700 mm
