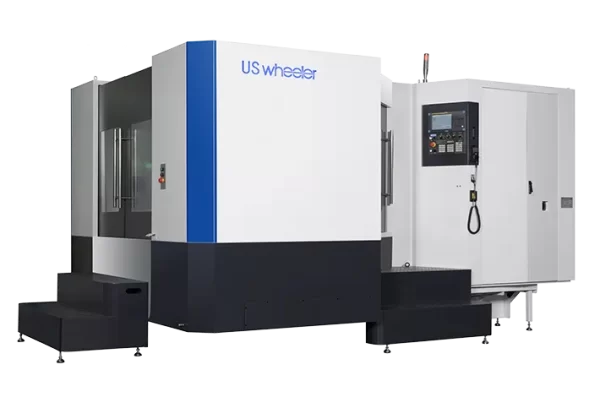

HM6300

Horizontal Machining Center The HM series high-rigidity roller guide horizontal machining center, which is designed based on the international advanced design concept, features inverted T-shaped bed, central head, moving column structure, large span, high rigidity and high strength, This series is particularly suitable for rough and finish machining of various box-type parts; the high acceleration/deceleration feed shaft shortens the positioning time, and the application of mainstream machine tool systems including high-speed spindle

SKU HM6300 Category US WHEELER

Model Highlights

Machining center

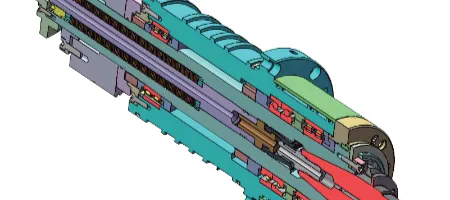

Spindle

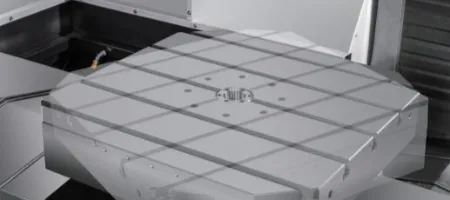

Table

Parameter Specifications

Item	Horizontal Machining Center HM6300	Specifications
Travel	Transverse X-axis	1050mm
	Vertical Y-axis	750mm
	Longitudinal Z-axis	900mm
	Distance from the spindle centerline to the worktable surface	120-870mm
	Distance from the end face of the spindle to the center of the table	130-1030mm
Worktable	Worktable size	630*630mm
	Worktable indexing	1°x360
	Worktable maximum load	800kg
	Maximum swing diameter of the worktable	Φ1200
Spindle	Spindle speed	50-6000rpm
	Drive mode	Synchronous belt drive
	Spindle motor torque	143/236Nm
	Main motor power	15/18.5kw
Servo axis	X/Y/Z rapid traverse speed	24/24/24m/min
Servo axis	Cutting feed rate	1-10000mm/min
Tool magazine	Tool magazine type	ATC刀库30把
Tool magazine	Tool magazine specifications	BT-50
Main accuracy	Positioning accuracy	0.01mm
Main accuracy	Repeatability	0.006mm
Others	Machine footprint and height	500540002850mm
	Machine weight (approx.)	12000kg
	CNC system	FANUC 0i MF PLUS
