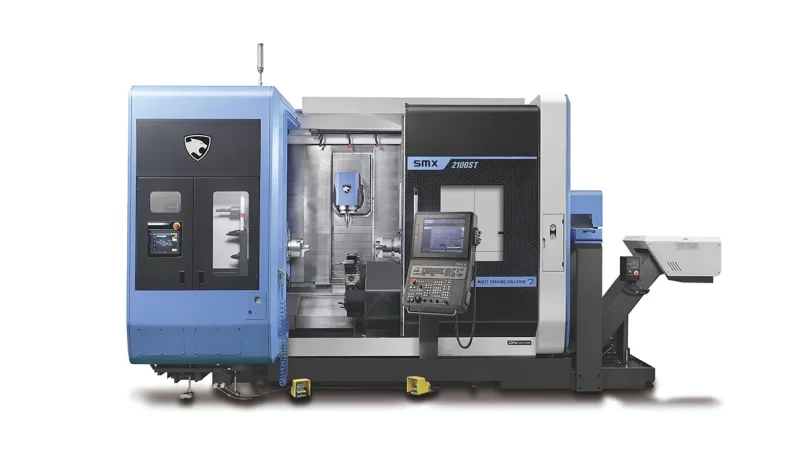

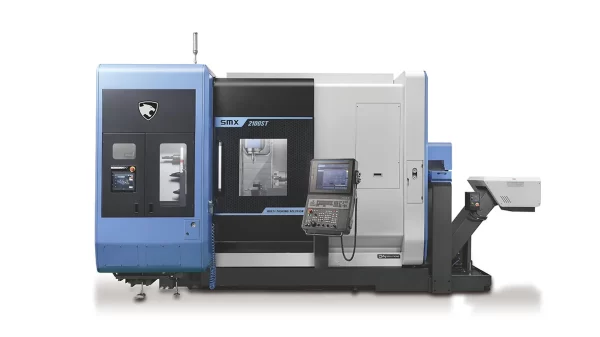

SMX 2100ST

SMX series High Performance Multi-Axis Mill Turn Machine With a total of nine axes on the SMX Series, there is essentially no limit to what you can create. SMX machines are equipped with larger chuck sizes than PUMA MX machines but deliver the same high performance and impressive flexibility. These machines make all the difference.

SKU SMX 2100ST Category DN SOLUTION

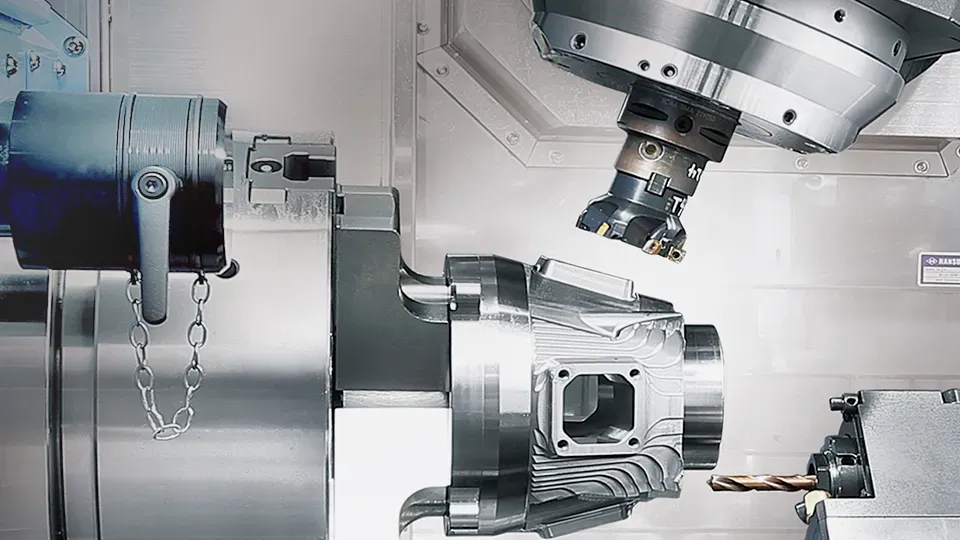

Even higher multi-tasking capability is available from SMX machines through the combination of the left and right spindles, the B-axis milling function and a lower turret ideal- making the machines ideal for complex, high-precision machining.

Orthogonal structure maximizes machining space.

12 station high-rigidity servo turret ensures accurate and powerful cutting performance, and outstanding process reliability.

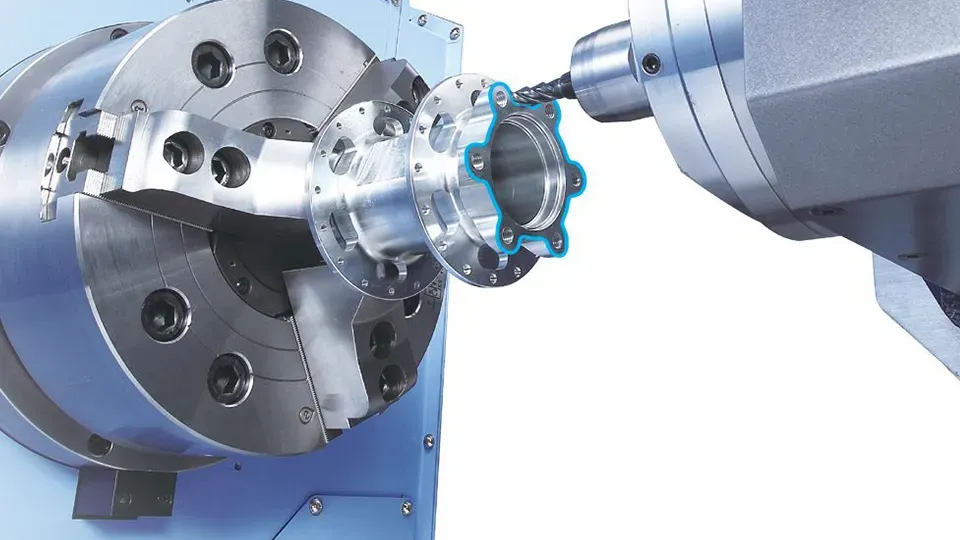

0.0001-degree precision control function of B-axis
and C-axis enables high-precision machining.

Minimized thermal displacement of the spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even during long machining runs and extended use.

Front located tool magazine and convenient ATC operation panel make it easy to change and replace tools, and monitor and check tool change operations.

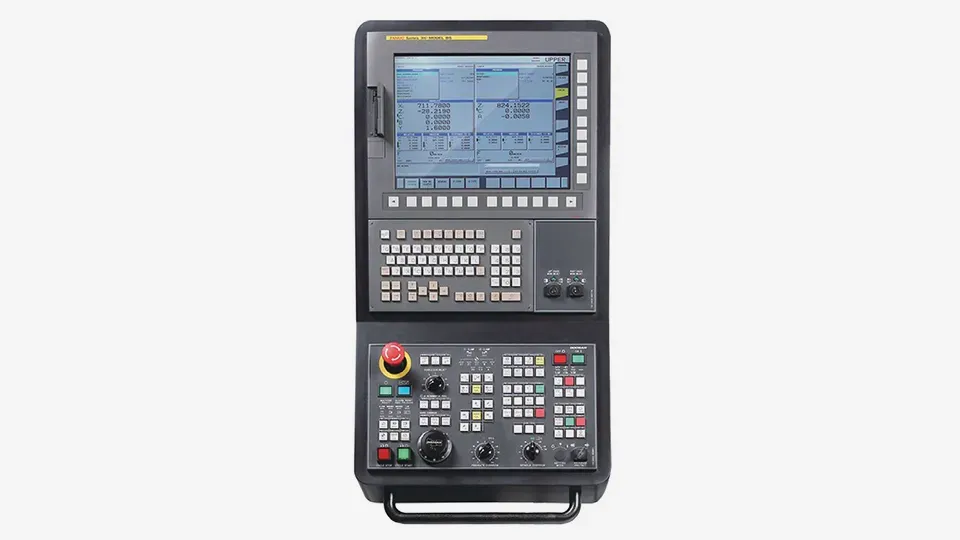

Side-to-side movable swivelling operation panel with adjustable height settings. User friendly work guidance function.

User friendly work guidance function.

CAPACITY
Chuck size	8 inch
Max. Turning Diameter	24 inch
Max. Turning Length	41 inch
LEFT SPINDLE
Max. Spindle Speed	5000 RPM
Max. Spindle Power	29 hp
Max. Spindle Torque	344 ft-lb
RIGHT SPINDLE
Max. Spindle Speed	5000 RPM
Max. Spindle Power	29 hp
Max. Spindle Torque	344 ft-lb
DIMENSIONS
Length	191 inch
Height	109 inch
Width	109 inch
Weight	33510 lb
