DCM-3222

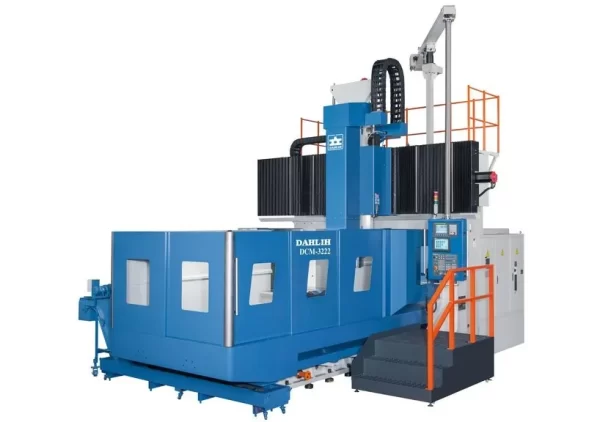

Double Column Machining Center Sturdy Construction for High Rigidity and High Accuracy With integrated optimal structural rigidity, the DahLih DCM Series Double Column Machining Center is designed and engineered for heavy cutting and high speed machining. It will fully exhibit unmatched stability and smoothness during machining

SKU DCM-3222 Category DAHLIH

TABLE
Table size	3,200 x 2,000 mm
T slot ( size x number x pitch )	22 x 9 x 220 mm
Max. table load	10,000 kgw
Distance from table surface to ground	1,035 mm
TRAVEL
Longitudinal travel ( X )	3,200 mm
Vertical travel ( Y )	2,200 mm
Cross travel ( Z )	1,100 mm
Distance between spindle nose and table surface	200 ~ 1,300 mm
Distance between centers	2,400 mm
Guild way type ( X, Y, Z-axis )	X: Type RollerLlinear Guideways, Y／Z:Hard track
X, Y, Z-axis transmission	X:Belt, Y／Z:Direct coupled
FEED
Rapid traverse X-axis	20 m/min
Rapid traverse Y-axis	20 m/min
Rapid traverse Z-axis	15 m/min
Cutting feed	1~10,000 mm/min
Min. input increment	0.001 mm
SPINDLE
Spindle transmission	Gear transmission
Spindle motor(30/ Points／continuous)	18.5 / 15 KW
Spindle taper cone	NT.50
Spindle speed	6,000 rpm
Spindle bearing diameter	Ø90 mm (Opt：Ø100 mm)
Cooling / Lubrication	Oil Cooling / Grease Lubrication
AUTOMATIC TOOL CHANGER
Tool storage capacity	40 T
Tool holder	BT50
Pull stud type	P50T-1(45°)
Max. tool weight	20 kgw
Max. tool length	Ø125 mm x 400 mm
Max. tool diameter	Ø250 mm
Tool selection	Bi-direction / Random
CNC CONTROLLER
CONTROLLER	FANUC 0iMF
OTHERS
Power requirement	45 KVA
Pneumatic pressure	6 kg/cm²
Coolant tank capacity	500L
Net weight	31,000 kg
Floor space (L x W)	9,000 x 5,900 mm

STANDARD ACCESSORIES

Spindle cooler device
Coolant around spindle
Heat exchanger
Removable manual pulse generator
Screw type chip conveyor + chip wagon
Screw chip auger
Call light
Work light
Splash guard
Pilot lamp
Tool kit
Coolant and air gun

OPTION ACCESSORIES

BBT50 10,000 r.p.m direct drive spindle
BBT40 15,000 r.p.m direct drive spindle
Oil mist device
Flat type chip conveyor + chip wagon
Oil skimmer
90^。angular head
X, Y, Z linear scale
Manual change head compartment
Automatic centering device
Tool length measuring device
Air conditioner
ATC tool storage: 60／90 tools
