TCN-2100

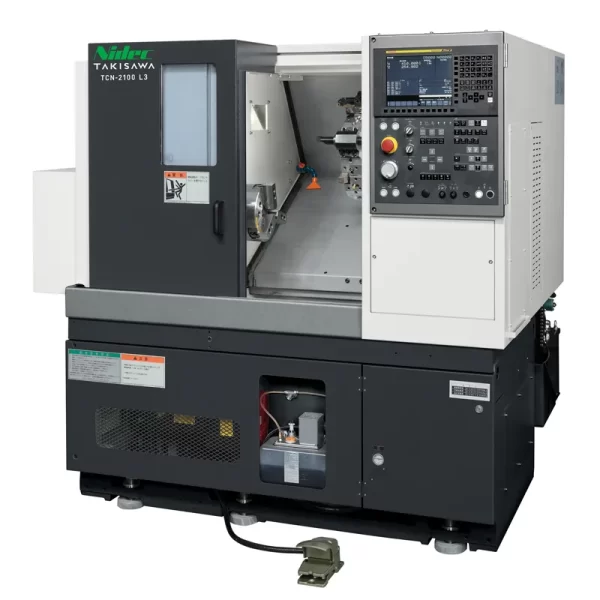

CNC Lathe (1 Spindle / 1 Turret)  New model of 8″ TCN chosen around the world for its high cutting capability and versatility!
  • ll slideways use highly rigid and highly accurate rectangular slides.
  • Continuous rated torque is improved compared to former machines by reviewing the spindle motor and reduction ratio.
  • Three types of 8-(Standard), 12-(Option) and milling 12-(Option) station turret are available.
  • Supporting highly rigid hydraulic tailstock (Optional)
SKU TCN-2100 Category
Loading...

Description

(Turning)
TCN-2100 L3 TCN-2100 L6
Chuck Size inch 8 8
Type of Turret 8-Station Turret
(Direct-Mount Type)
12-Station Turret
(Direct-Mount Type)
8-Station Turret
(Direct-Mount Type)
12-Station Turret
(Direct-Mount Type)
Max. Turning Diameter mm φ410 φ340 φ410 *2 φ340 *2
Max. Turning Length mm 300 600
Bar Capacity *1 mm φ51 φ51
Spindle Speed min-1 3200 [OP. 5000] 3200 [OP. 5000]
Rotary Tool Speed min-1 – –
Rapid Traverse Rate m/min X : 24 / Z : 30 X : 24 / Z : 30
Spindle Motor
(30 min,S3 60%/continuous)
kW 11/9 11/9
Rotary Tool Motor
(15 min/continuous)
kW – –
Machine Height mm 1700 1700
Required Floor Space mm 1750×1532 2095×1532
Machine Weight kg 2700 3200

*1) Please note the bar capacity follows types of chucks and cylinders.
*2) Due to the spec. of L6, there might be the limit for maximum turning diameter depending on the work size. Please refer to ” The Limit of the Turning Range” of catalog.

Reviews

There are no reviews yet.

Be the first to review “TCN-2100”

Your email address will not be published. Required fields are marked *

(Turning)
TCN-2100 L3 TCN-2100 L6
Chuck Size inch 8 8
Type of Turret 8-Station Turret (Direct-Mount Type) 12-Station Turret (Direct-Mount Type) 8-Station Turret (Direct-Mount Type) 12-Station Turret (Direct-Mount Type)
Max. Turning Diameter mm φ410 φ340 φ410 *2 φ340 *2
Max. Turning Length mm 300 600
Bar Capacity *1 mm φ51 φ51
Spindle Speed min-1 3200 [OP. 5000] 3200 [OP. 5000]
Rotary Tool Speed min-1 – –
Rapid Traverse Rate m/min X : 24 / Z : 30 X : 24 / Z : 30
Spindle Motor (30 min,S3 60%/continuous) kW 11/9 11/9
Rotary Tool Motor (15 min/continuous) kW – –
Machine Height mm 1700 1700
Required Floor Space mm 1750×1532 2095×1532
Machine Weight kg 2700 3200

*1) Please note the bar capacity follows types of chucks and cylinders. *2) Due to the spec. of L6, there might be the limit for maximum turning diameter depending on the work size. Please refer to ” The Limit of the Turning Range” of catalog.
