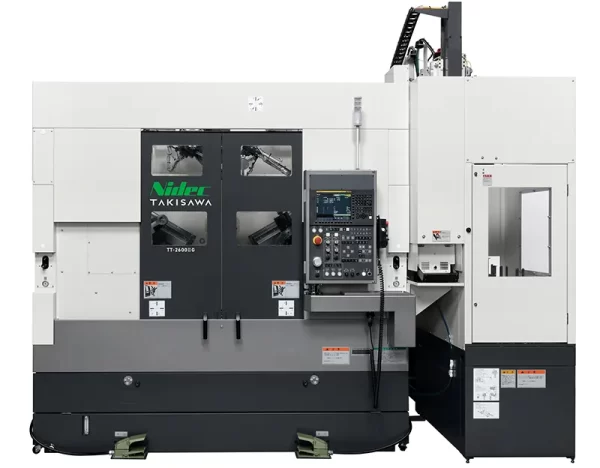

CNC Lathe (2 Spindle / 2 Turret) The TT-2600G has been updated with a highly rigid box-type bed that is resistant to thermal displacement, and square slideways on all axes. In addition to the conventional 8″ and 10″ specifications, an optional specification compatible with a 12″ chuck has been added, expanding the lineup.

SKU TT-2600G Category TAKISAWA

Description
Reviews (0)

Description

		（Turning）
		TT-2600ⅡG		TT-2600ⅡWG
Chuck Size	inch	8+8	10+10	12+12
Type of Turret		12-Station Turret （All-Holder Type）		12-Station Turret （All-Holder Type）
Max. Turning Diameter	mm	φ290		φ340
Max. Turning Length	mm	214	204	184 [OP. 166]
Spindle Speed	min^-1	4000	3200 [OP. 2500]	2500
Rotary Tool Speed	min^-1	–		–
Rapid Traverse Rate	m/min	X : 24 / Z : 24		X : 24 / Z : 24
Spindle Motor	kW	11/7.5 [OP. 15/11] （15 min/continuous）	15/11 （15 min/continuous） [OP. 18.5/15（30 min/continuous）]	15/11 （15 min/continuous）
Rotary Tool Motor （S3 25%/15 min/continuous）	kW	–		–
Machine Height	mm	3751	3840	4130
Required Floor Space	mm	3227×2938	3412×2938	3725×2938
Machine Weight	kg	6300	6400	6500
